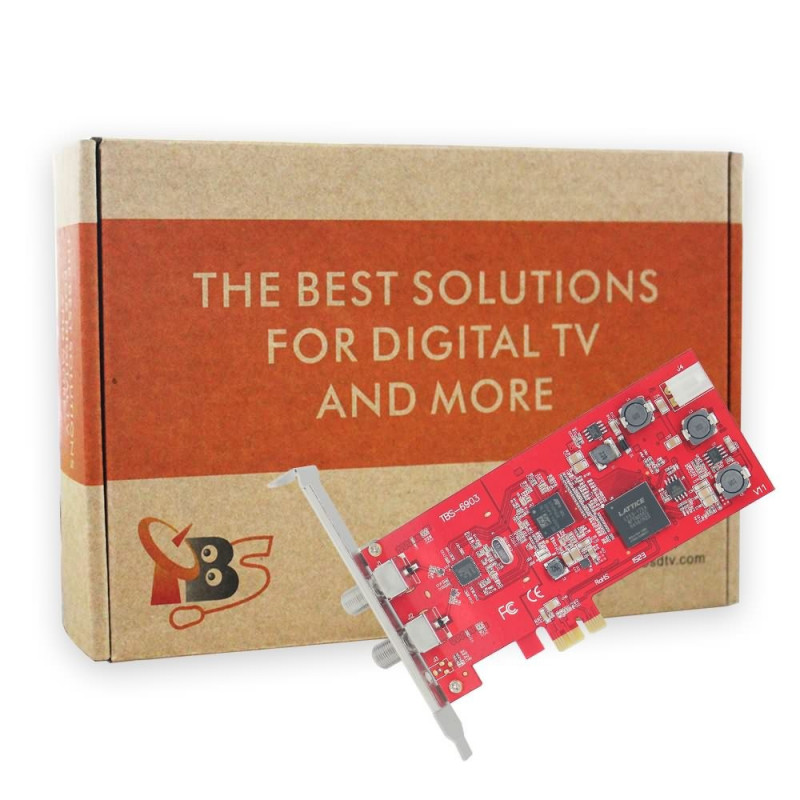

TBS6903, compatible with EUMETCast, is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903 not only supports normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders of another tuner at the same time.
Main Features:
EUMETCast Compatibility
DVB-S2/S dual tuner
Watch & record satellite TV/ radio programs on PC
CCM, VCM, ACM and Multi Input Stream support
Generic stream mode Support
Blind scan support
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specifications:
Frequency range: 950~2150 MHz
Dual channels DVB-S2/S 8PSK QPSK 16APSK 32APSK ACM/VCM
Demodulator
Symbol rate:
Maximum symbol DVB-S2 rate limitations (Msymb/s)
Msymb/s |
Demod |
LDPC |
Single |
Dual |
QPSK |
67.5 |
135 |
67.5 |
67.5 |
8PSK |
67.5 |
90 |
67.5 |
45 |
16APSK |
67.5 |
67.5 |
67.5 |
33.7 |
32APSK |
67.5 |
54 |
54 |
27 |
DVB-S QPSK +1/2,2/3,3/4,5/6,7/8
Support Data Burst & Tone Burst
Support DiSEqC2.X and Motor
System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB
Package Contents:
1 x TBS6903
1 x Low profile bracket
1 x DC line
